CHARACTERISTICS

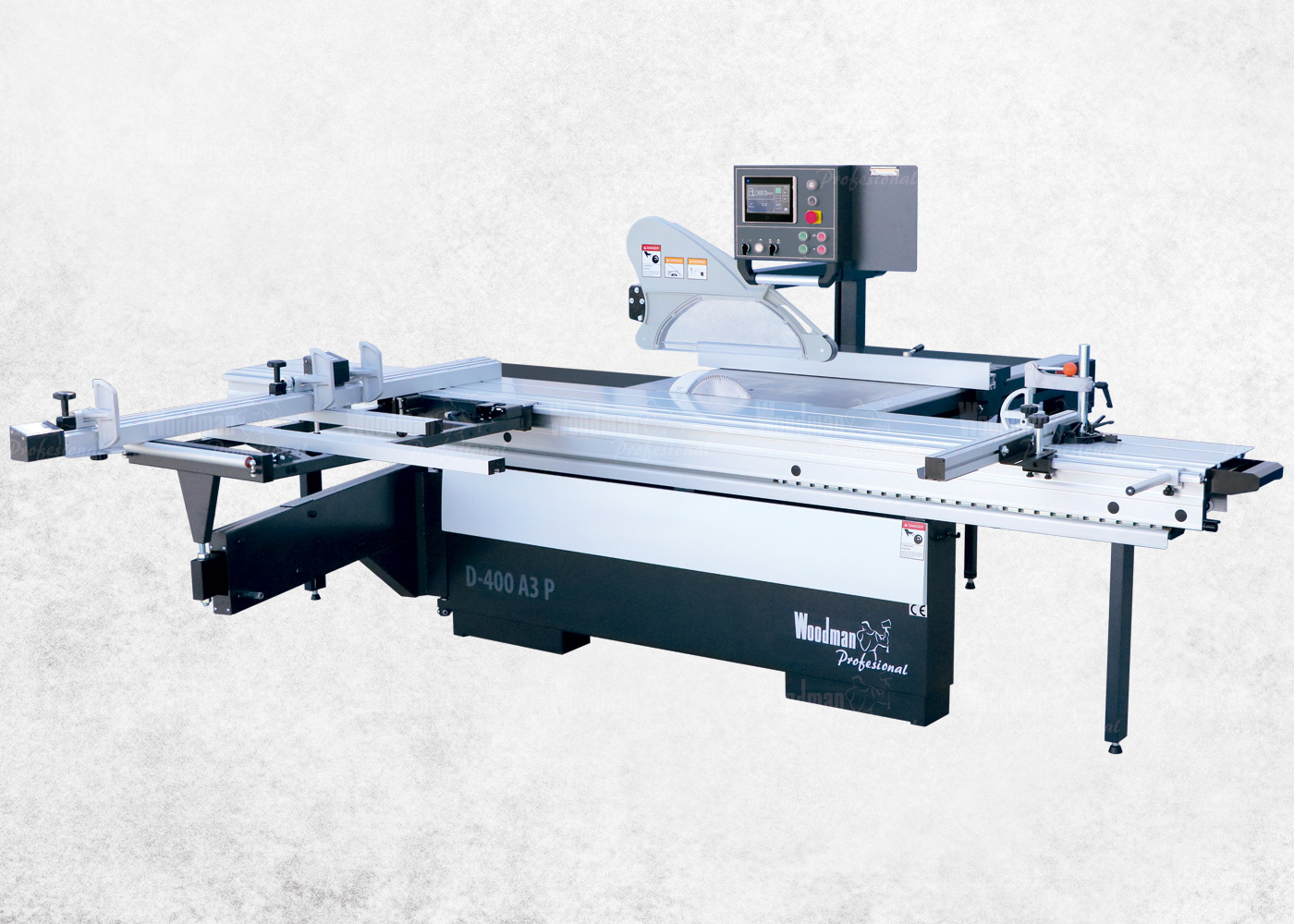

The most advanced model of the professional D series, it combines the greatest technological innovations and all the essential high-end qualities, obtaining a competitive and excellent result in the final production.

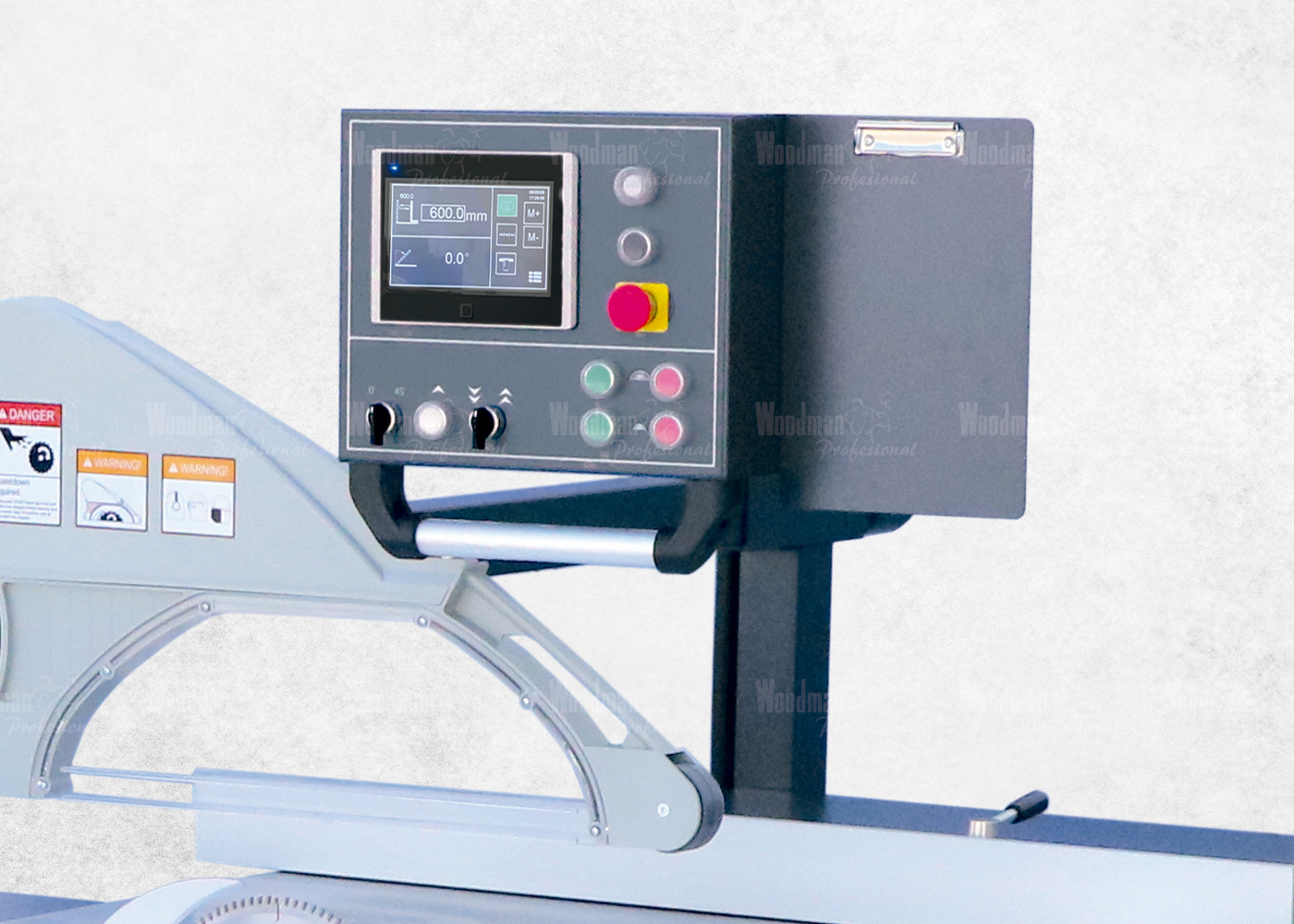

In addition to the motorized unit for inclining, raising and lowering, it has a parallel cut with positioning control, achieving greater precision, comfort and speed in the cutting process.

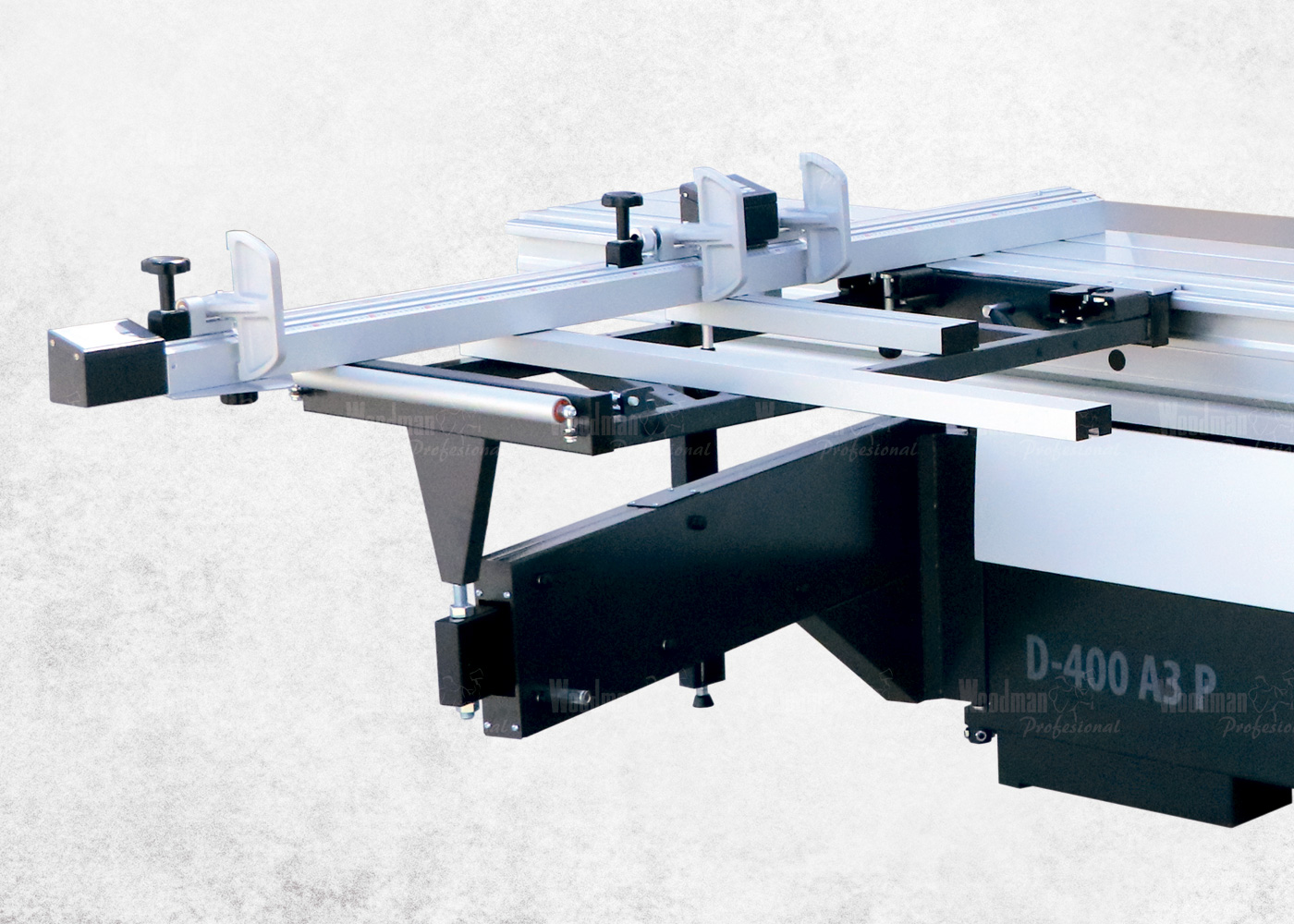

Sliding table size 3200 x 395 mm.
Cast iron table 548 x 896 mm.
Extension auxiliary table 952 x 896 mm.
Extension auxiliary table (rear) 320 x 830 mm.
Total table size 1500 x 1726 mm.
Ø Round rail -
Main saw blade 400 mm.
Main saw bore 30 mm.
Max. cutting height at 90º 125 mm.
Max. cutting height at 45º 90 mm.
Main motor power 7,5 Hp
Main blade speed (R.p.m.) 3000 / 4000 / 5000
Scoring saw blade 120 mm.
Scoring saw blade bore 20 mm.
Scoring blade motor power 1 HP
Scoring blade speed (R.p.m.) 8.000
Cutting width 1.300 mm.
Cutting width adjustment motorized
Main saw blade tilting adjustment motorized
Main saw blade height adjustment motorized
Dust collector Ø 1 x 100 / 1 x 120 mm.
Net weight 980 Kg.
